Real-time, in-field gamma spectrometry
Portable self-contained fully-integrated solution
Automatic energy calibration (no source needed)
Detector: 2″x2″ NaI(Tl) coupled with SiPM and MCA
Self-contained in a rugged IP67 technical case
Built-in lead shielding for low MDC in the field

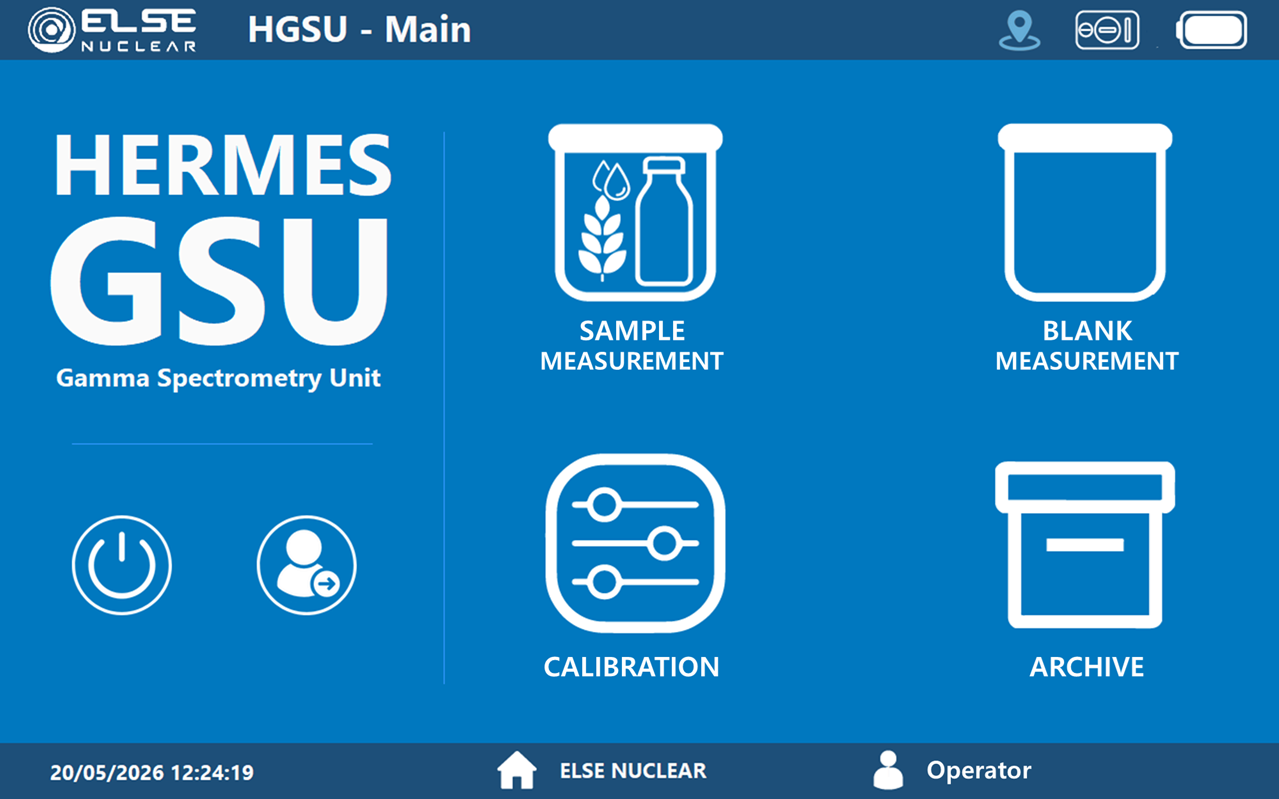

6” touchscreen panel PC with dedicated spectrometry software
Rechargeable internal battery for ≥ 8 h operation

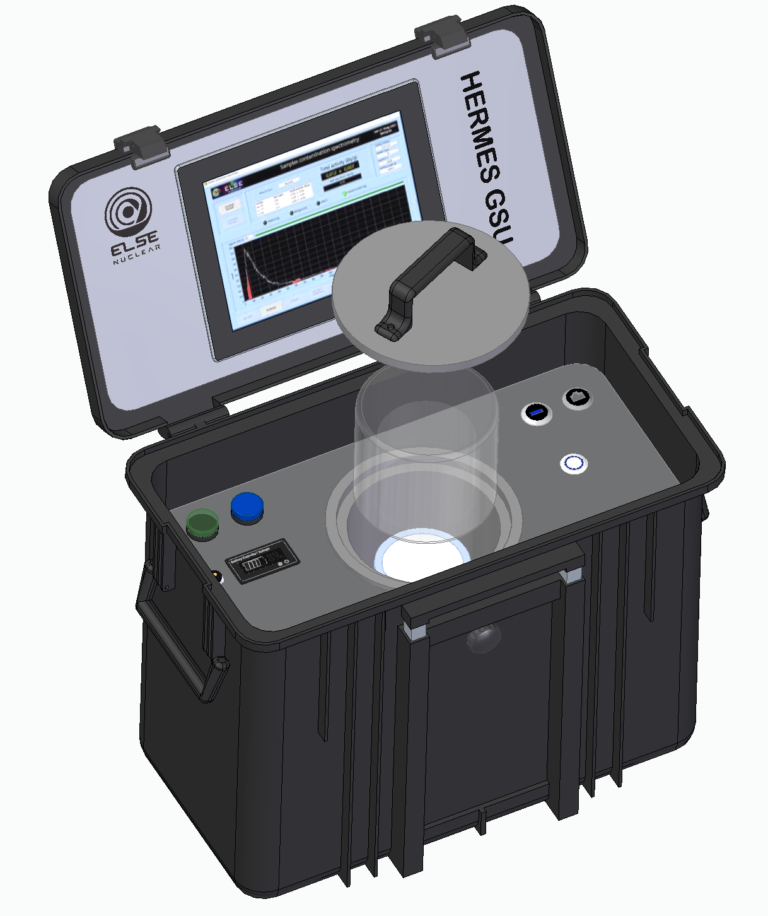

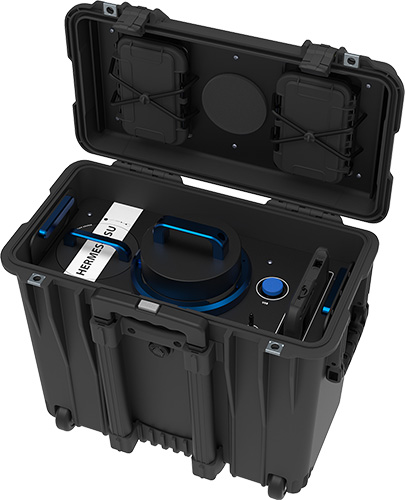

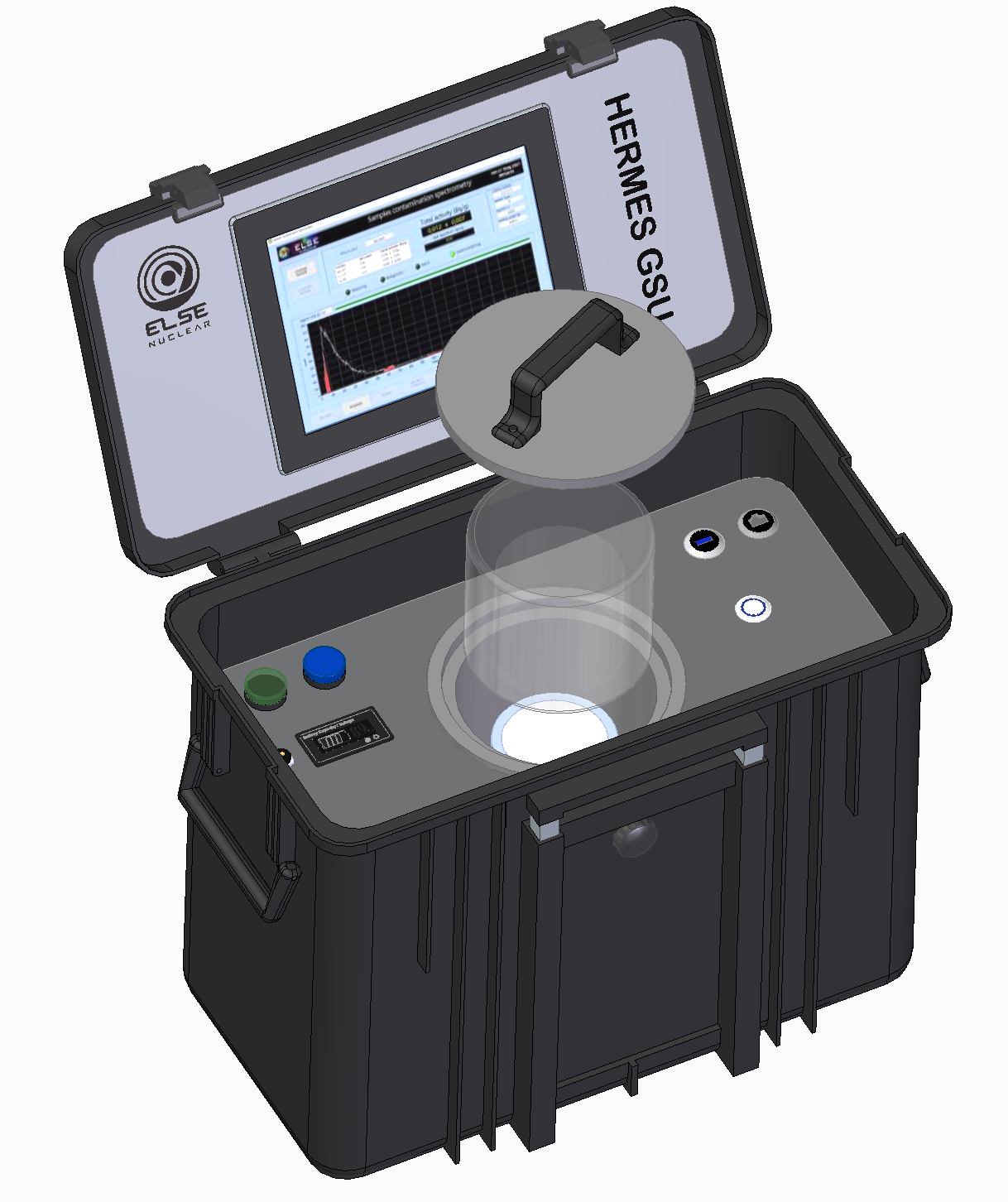

HERMES GSU is a portable gamma spectrometry system designed for rapid and precise in-field analysis of environmental samples. As part of the HERMES product line, it features a rugged, modular, and self-contained design housed in a high IP-rated technical case, ensuring durability and reliability in demanding conditions.
HERMES GSU quantifies isotope activity concentrations based on a rich built-in, yet fully-editable, isotope library. Its portability and autonomous operation make it ideal for both routine monitoring and emergency response scenarios.
Samples can be directly collected from the field, placed in 500 ml Marinelli beakers, and inserted into the built-in 1 cm lead-shielded well, minimizing background radiation for immediate, on-the-spot, low MDC analysis, and enhancing measurement accuracy and sensitivity. The system automatically calculates activity concentrations, making it a powerful tool for in-situ, laboratory-grade measurements.
HERMES GSU features advanced routines for gain stabilization, dead time correction, and automatic energy calibration (relying on natural background only, thus not requiring any radioactive reference source).
Efficiency calibration curves are generated using validated Monte Carlo simulations. Predefined efficiency curves are available for different sample matrices, including soil, water, and foodstuffs, across various densities. Custom calibration curves can be provided upon request.
